Recently, I started working on the following research idea proposed by b10c: Research and exploration: Can we spot public spy-Electrum servers run by Chainalysis?
Based on the ideas from b10c, I started collecting data from public Electrum servers listed on:
https://1209k.com/bitcoin-eye/ele.php?chain=btc
Since this is still a first version, I did not include Tor servers yet.
For now, I am only collecting the mempool fee histogram using the mempool.get_fee_histogram Electrum protocol method:
https://electrum-protocol.readthedocs.io/en/latest/protocol-methods.html#mempool-get-fee-histogram
My initial hypothesis is that a cheap way to structure spy Electrum servers would be to connect multiple Electrum servers to the same Bitcoin node. If that is the case, one possible suspicious behavior would be different servers exposing identical fee histograms, since they would share the same mempool source.
In this first version, out of 96 registered Electrum servers, 59 responded successfully. I implemented continuous collection every 5 minutes.
To compare histograms, I used Jensen-Shannon Divergence (JSD), which measures the similarity between probability distributions:
https://en.wikipedia.org/wiki/Jensen%E2%80%93Shannon_divergence
Lower values indicate more similar distributions:
-
JSD = 0 means the distributions are identical
-
Values closer to 1 indicate more distinct distributions

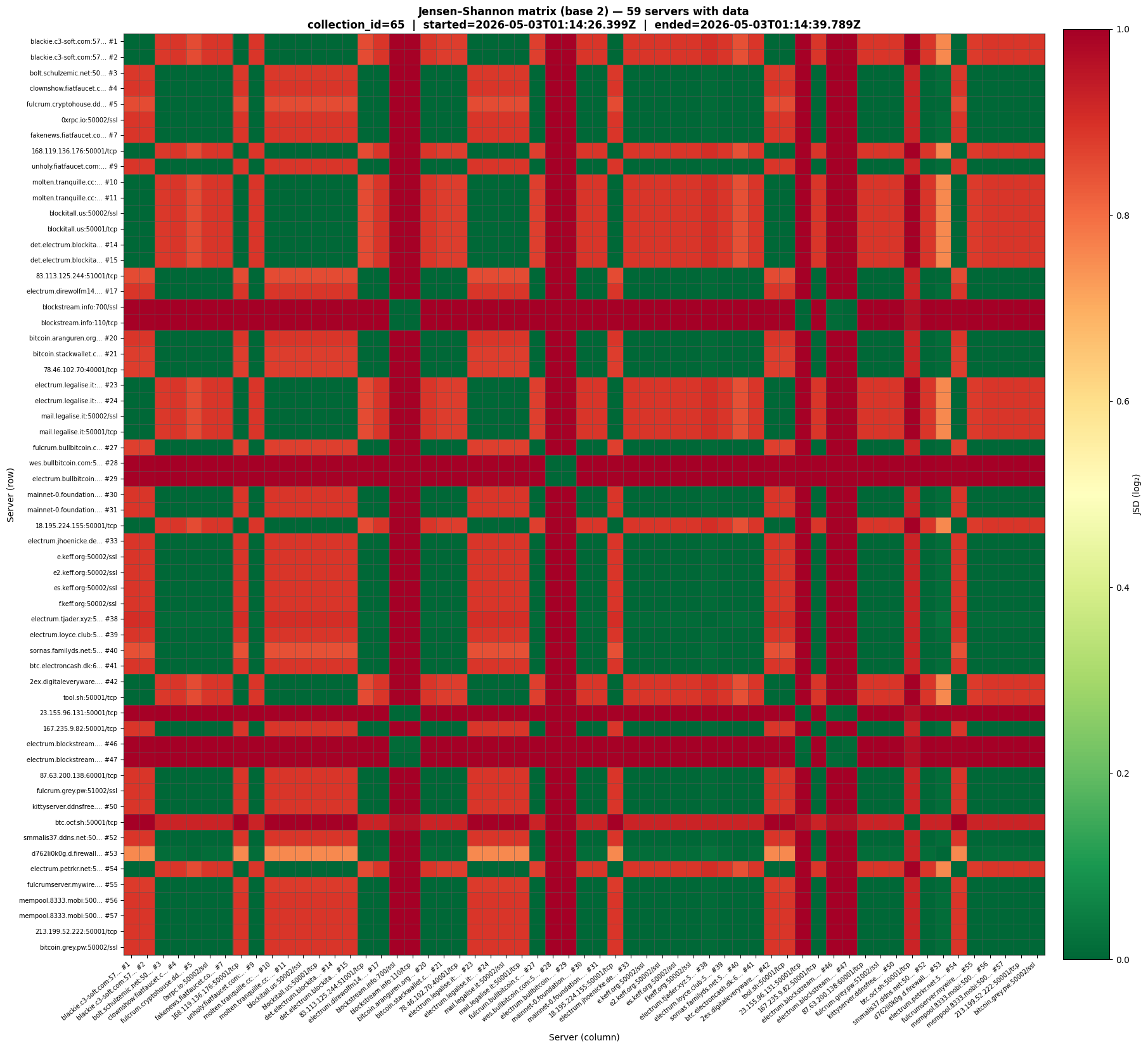

Figure below shows a matrix comparing all servers against each other at a specific moment in time.
Initially, I expected to observe most pairs with high divergence values (closer to 1). However, the opposite happened. Most server pairs had JSD = 0, meaning their fee histograms were identical.
To better understand this behavior, I used JSD as a clustering metric. Using a simple rule where servers with JSD <= 0.5 are considered connected, I generated 5 clusters.
Cluster 1 is particularly interesting because it appears to group servers from apparently unrelated organizations and operators.
# Cluster 1
0 0xrpc.io:50002/ssl 0
1 167.235.9.82:50001/tcp 0
2 213.199.52.222:50001/tcp 0
3 78.46.102.70:40001/tcp 0
4 83.113.125.244:51001/tcp 0
5 87.63.200.138:60001/tcp 0
6 bitcoin.aranguren.org:50001/tcp 0
7 bitcoin.grey.pw:50002/ssl 0
8 bitcoin.stackwallet.com:50002/ssl 0
9 bolt.schulzemic.net:50001/tcp 0
10 btc.electroncash.dk:60001/tcp 0
11 clownshow.fiatfaucet.com:50002/ssl 0
12 d762li0k0g.d.firewalla.org:50001/tcp 0
13 e.keff.org:50002/ssl 0
14 e2.keff.org:50002/ssl 0
15 electrum.direwolfm14.com:50001/tcp 0
16 electrum.jhoenicke.de:50002/ssl 0
17 electrum.loyce.club:50001/tcp 0
18 electrum.tjader.xyz:50002/ssl 0
19 es.keff.org:50002/ssl 0
20 f.keff.org:50002/ssl 0
21 fakenews.fiatfaucet.com:50002/ssl 0
22 fulcrum.bullbitcoin.com:50002/ssl 0
23 fulcrum.cryptohouse.ddns.net:51001/tcp 0
24 fulcrum.grey.pw:51002/ssl 0
25 fulcrumserver.mywire.org:50001/tcp 0
26 kittyserver.ddnsfree.com:50001/tcp 0
27 mainnet-0.foundation.xyz:50001/tcp 0
28 mainnet-0.foundation.xyz:50002/ssl 0
29 mempool.8333.mobi:50001/tcp 0
30 mempool.8333.mobi:50002/ssl 0
31 smmalis37.ddns.net:50001/tcp 0
32 sornas.familyds.net:50001/tcp 0
33 unholy.fiatfaucet.com:50002/ssl 0
# Cluster 2
34 168.119.136.176:50001/tcp 1
35 18.195.224.155:50001/tcp 1
36 2ex.digitaleveryware.com:50001/tcp 1
37 blackie.c3-soft.com:57001/tcp 1
38 blackie.c3-soft.com:57002/ssl 1
39 blockitall.us:50001/tcp 1
40 blockitall.us:50002/ssl 1
41 det.electrum.blockitall.us:50001/tcp 1
42 det.electrum.blockitall.us:50002/ssl 1
43 electrum.legalise.it:50001/tcp 1
44 electrum.legalise.it:50002/ssl 1
45 electrum.petrkr.net:50002/ssl 1
46 mail.legalise.it:50001/tcp 1
47 mail.legalise.it:50002/ssl 1
48 molten.tranquille.cc:50001/tcp 1
49 molten.tranquille.cc:50002/ssl 1
50 tool.sh:50001/tcp 1
# Cluster 3
51 23.155.96.131:50001/tcp 2
52 blockstream.info:110/tcp 2
53 blockstream.info:700/ssl 2
54 electrum.blockstream.info:50001/tcp 2
55 electrum.blockstream.info:50002/ssl 2
# Cluster 4
56 btc.ocf.sh:50001/tcp
# Cluster 5
57 electrum.bullbitcoin.com:50002/ssl 4
58 wes.bullbitcoin.com:50002/ssl 4
These clusters have remained stable since the beginning of the collection. Sampling different timestamps shows that many of these servers continue exposing identical histograms over time.
This is obviously not evidence of a Sybil or surveillance infrastructure by itself, but it is still a curious result.
Right now, I am investigating how different Electrum server implementations generate the get_fee_histogram response. The protocol documentation does not clearly specify how histogram bins should be constructed, so what I am observing may simply be an implementation artifact.
As the next step, I plan to incorporate additional metrics suggested by b10c in the original research idea and verify whether these clusters remain stable across multiple independent signals.
